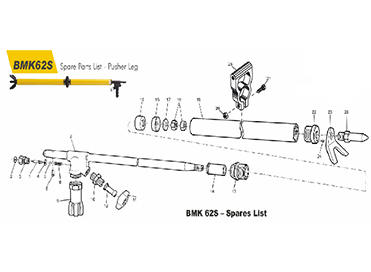

BMK62S PUSHER LEG & SPARE PARTS

Item Code: BMK62S

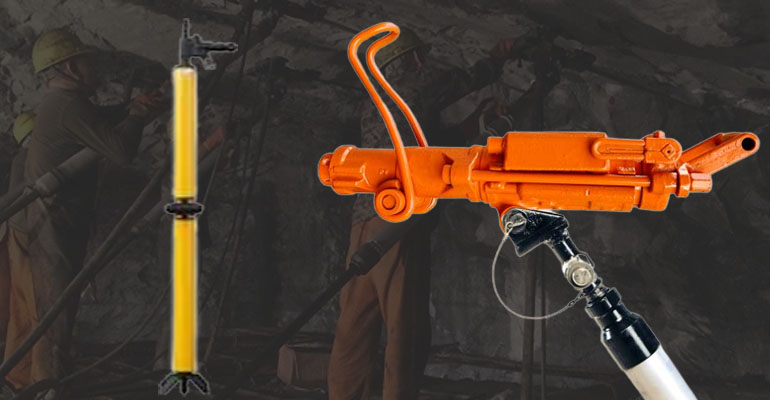

With our quality-centric approach, we have designed Pusher Leg, to be used in drifting and tunneling operations. These products are manufactured as per the approved industry norms and thus, are offered with the assurance of flawless working. Suitable for inclined drilling, these products offer complete freedom of movement in any position. Customers can source these pusher legs in standard forms.

Features:
  • 1. Robust design
  • 2. Simple to Connect
  • 3. Dimensional accuracy
  • Specifications:
    Net Watt ( Kg ) Length ( Mm ) Length Extended ( Mm ) Extension Length ( Length ) Piston Diameter ( Mm )
    17 1815 3115 1300 53

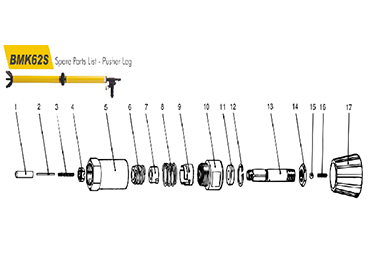

    Ref. No Part Number Qty Description
    1 3122039000 1 Valve Pin
    2 3006775100 1 Pin
    3 3006270000 1 Spring
    4 3122038900 1 Nut
    5 3106744100 1 Sleeve
    6 3106744600 1 Driver
    7 3106764700 1 Sliding Piece
    8 3122044300 1 Spring
    9 3106764800 1 Washer
    10 3106744200 1 Guide Socket
    11 0666409300 1 Seal Ring
    12 0335213200 1 Circlip
    13 3122038800 1 Spindle
    14 3106862600 1 Nut
    15 0517141400 1 Ball
    16 3051200300 1 Spring
    17 3122020400 1 Hand Wheel
    Ref. No Part Number Qty Description
    1 3122039000 1 Valve Pin
    2 3006775100 1 Pin
    3 3006270000 1 Spring
    4 3122038900 1 Nut
    5 3106744100 1 Sleeve
    6 3106744600 1 Driver
    7 3106764700 1 Sliding Piece
    8 3122044300 1 Spring
    9 3106764800 1 Washer
    10 3106744200 1 Guide Socket
    11 0666409300 1 Seal Ring
    12 0335213200 1 Circlip
    13 3122038800 1 Spindle
    14 3106862600 1 Nut
    15 0517141400 1 Ball
    16 3051200300 1 Spring
    17 3122020400 1 Hand Wheel

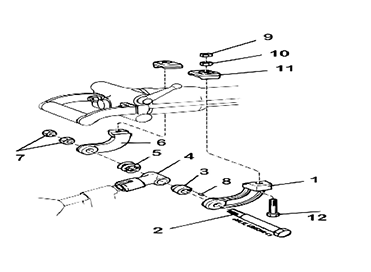

    Ref. No Part Number Qty Description
    1 3001367601 1 Machine Holder
    2 3001368401 1 Bolt
    3 3001368500 1 Washer
    4 3001359701 1 Feed Mount
    5 3000914021 1 Spring
    6 3001367701 1 Machine Holder
    7 3000134902 1 Nut
    8 3005511407 1 Pin
    9 3106977800 1 Nut
    10 3000134500 1 Nut
    11 3101368001 1 Clamp
    12 3106977700 1 Bolt
