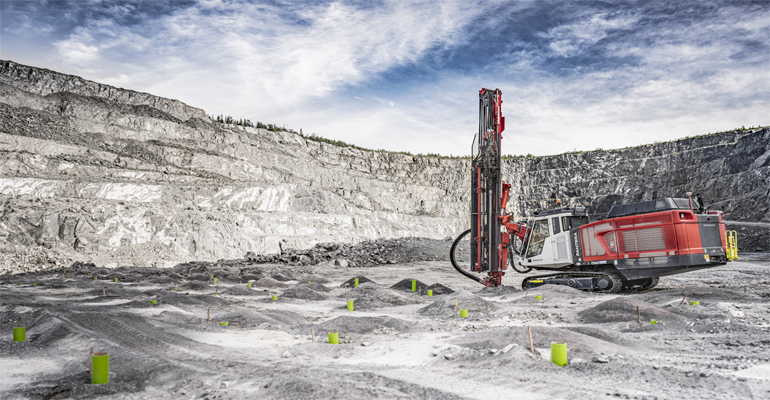

SURFACE DRILL RIGS


Customers count on us to develop the most durable products on the market. With every machine we engineer, we prioritize safety and reliability, and apply the right technology for each application.

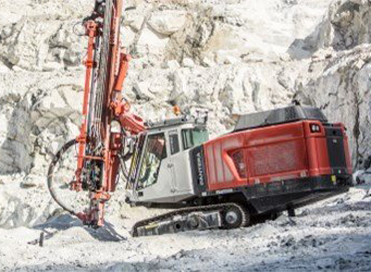

SURFACE TOP HAMMER DRILL RIGS

Top hammer drill rigs are equipped with powerful hydraulic rock drills that offer high penetration rates, reliability, and excellent fuel economy. These diesel-powered rigs represent the industry's leading range, from lightweight rubber-tire drills to the most powerful production drills available.

Model Hole Range Rock Drill On-Board Compressor Weight - KG
Ranger™ DX900i 89-140* RD927L, 27 kW 9.5 m3/min 19,600
Ranger™ DX800i 64-127** RD925M/921S, 25/21 kW 8.5 m3/min 19,600
Ranger™ DX800 76-127 HL/HF820T, 21/23 kW 8.1m³/min 15,600
Ranger™ DX700 76-115 HL710, 19.5 kW 8.1m³/min 15,600
Ranger™ DX600 64-102 HL650, 17.5 kW 6.2 m³/min 15,600
Ranger™ DX500 51-89 HL510, 15.5 kW 6.2 m³/min 15,200
Ranger™ DX800R 76-127 HL/HF820T, 21/23 kW 8.1 m³/min 15,600
Ranger™ DX600R 64-102 HL650 17.5 kW 6.2 m³/min 15,600
Pantera™ DP1500i 89-152 HL1560T/RD1635CF, 33/35 kW 14 m³/min 23,000
Pantera™ DP1100i 89-140 HL1060T/RD1635CF, 25/35 kW 11 m³/min 22,900
Tiger™ DG810 76-127 HL/HF820T, 21/23 kW 8.1/9.6 m³/min 15,700
Tiger™ DG710 76-115 HL710, 19.5 kW 8.1 m³/min 15,700
Dino™ DC410R/Ri 51-76 RD414, 14 kW 3.5 m³/min 10,000
Commando™ DC300Ri 38-64 HL300, 9 kW 3.0 m³/min 6,100
Commando™ DC130Ri 22-45 RD106, 5.5 kW 1.2 m³/min 3,250
Commando™ DC120/DC121R 22-45 RD106, 5.5 kW 1.2 m³/min 2,710

Surface down-the-hole (DTH) drills offer the highest mobility, a smaller footprint and the ability to serve multiple sites. Equipped with powerful down-the-hole hammers, Down The Hole Rigs are designed for high-capacity rock drilling in quarries, opencast mines and rock excavation projects.

SURFACE DOWN-THE-HOLE DRILL RIGS
