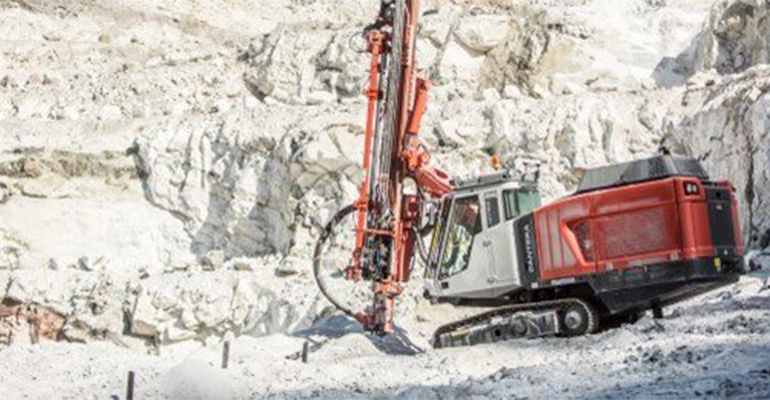

SURFACE TOP HAMMER DRILL RIGS


Top hammer drill rigs are equipped with powerful hydraulic rock drills that offer high penetration rates, reliability, and excellent fuel economy. These diesel-powered rigs represent the industry's leading range, from lightweight rubber-tire drills to the most powerful production drills available.

Model Hole Range Rock Drill On-Board Compressor Weight - KG
Ranger™ DX900i 89-140* RD927L, 27 kW 9.5 m3/min 19,600
Ranger™ DX800i 64-127** RD925M/921S, 25/21 kW 8.5 m3/min 19,600
Ranger™ DX800 76-127 HL/HF820T, 21/23 kW 8.1m³/min 15,600
Ranger™ DX700 76-115 HL710, 19.5 kW 8.1m³/min 15,600
Ranger™ DX600 64-102 HL650, 17.5 kW 6.2 m³/min 15,600
Ranger™ DX500 51-89 HL510, 15.5 kW 6.2 m³/min 15,200
Ranger™ DX800R 76-127 HL/HF820T, 21/23 kW 8.1 m³/min 15,600
Ranger™ DX600R 64-102 HL650 17.5 kW 6.2 m³/min 15,600
Pantera™ DP1500i 89-152 HL1560T/RD1635CF, 33/35 kW 14 m³/min 23,000
Pantera™ DP1100i 89-140 HL1060T/RD1635CF, 25/35 kW 11 m³/min 22,900
Tiger™ DG810 76-127 HL/HF820T, 21/23 kW 8.1/9.6 m³/min 15,700
Tiger™ DG710 76-115 HL710, 19.5 kW 8.1 m³/min 15,700
Dino™ DC410R/Ri 51-76 RD414, 14 kW 3.5 m³/min 10,000
Commando™ DC300Ri 38-64 HL300, 9 kW 3.0 m³/min 6,100
Commando™ DC130Ri 22-45 RD106, 5.5 kW 1.2 m³/min 3,250
Commando™ DC120/DC121R 22-45 RD106, 5.5 kW 1.2 m³/min 2,710
